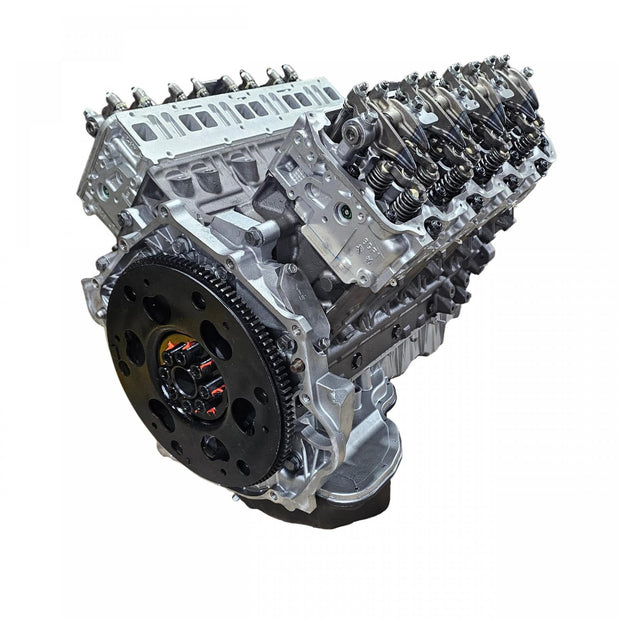

6.6L Long Block Daily Driver LLY Engine 2004.5-2006 - Duramax Diesel Engine
This 6.6L Duramax LLY Long Block build Includes:
- New Freeze Plugs
- 5 year/100k Mile Warranty
- New Flywheel
- New Harmonic Balancer
- Upper Oil Pan
- Lower Oil Pan
- Rear Cover
- Front Cover
- Front Main Seal
- Rear Main Seal
- Head Studs
- Remanufactured Heads
- New Guides
- New Valve Seals
- CNC Valve Machining
- Pressure Tested
- Surfaced to exceed Ra finish for MLS Gaskets
- Check both wrist pin and crank pin to rod clearances
- New Upgraded Pistons
- New Piston Rings
- New Piston Pin Retainers
- New OE Lifters
- Lifter Guides
- OE Crank Flange Bolts
- Crankshaft - Balanced and Matched Rotational Assembly
- Crankshaft is Polished and ground to .0005 concentricity or less
- Camshaft - Polished and Inspected
- New Rod Bearings
- New Main Bearings
- New Cam Bearings
- Install Pickup Tube O-ring
- Connecting Rods
Machining Processes
- Full CNC blue print machining, (bore, deck, hone and line honed)
- The Cylinder bores are blue print bored to a true 90 degrees over the crankshaft center line
- Diamond honed to within .0002 inch for precise piston to cylinder bore clearance.
- Bored and line hone the crank bore housing to precisely align the crankshaft in the engine block.
- Torque Plate Honed
- The piston diameter measured to the nearest .0001 inch matched to cylinder bores.
- The Cylinder block is surfaced to a finish of RA30 or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surface. (This is mandatory for proper sealing of a MLS Gasket.)
- Keyed Crankshaft
- Balanced and Weight Matched Rotational Assembly
- Flexplate for Automatic transmission. (If you are using this for a manual transmission we highly suggest sending in your flywheel and pressure plate so we can achieve the best balancing job possible for your engine. Also, now is a great time to upgrade your clutch. Get with our team to talk about the options we have available for you!)
Duramax LLY
Vehicles
- 2004-2004 Chevrolet Silverado 3500 WT
- 2004-2005 Chevrolet Silverado 2500 HD
- 2004-2005 Chevrolet Silverado 2500 HD LS
- 2004-2005 Chevrolet Silverado 2500 HD LT
- 2004-2005 Chevrolet Silverado 2500 HD WT
- 2004-2005 Chevrolet Silverado 3500
- 2004-2005 Chevrolet Silverado 3500 LS
- 2004-2005 Chevrolet Silverado 3500 LT
- 2004-2005 GMC Sierra 2500 HD
- 2004-2005 GMC Sierra 2500 HD SLE
- 2004-2005 GMC Sierra 2500 HD SLT
- 2004-2005 GMC Sierra 2500 HD WT
- 2004-2005 GMC Sierra 3500
- 2004-2005 GMC Sierra 3500 SLE
- 2004-2005 GMC Sierra 3500 SLT
- 2004-2005 GMC Sierra 3500 WT
