CHOATE 5.9L Short Block Daily Driver Engine 2005-2007- Cummins Dodge Diesel Engine Manufacturer: CHOATE Engineering Performance
CHOATE Part Number: CEP59CSD0507
Fitment : Fits 2005-2007, Dodge 5.9L Cummins Equipped Vehicles
DID YOU KNOW? NO MAJOR PARTS* ARE REUSED AT CHOATE! LIFTERS, ALL BEARINGS, AND ALL PISTONS ARE BRAND-NEW PARTS. THIS PUTS CHOATE AT THE FOREFRONT OF THE ENGINE BUILDING INDUSTRY STANDARD. MANY BUILDERS REUSE THESE SAME PARTS. ALWAYS ASK YOUR ENGINE BUILDER IF THESE ITEMS ARE NEW OR USED. *While Choate supplies more new parts than those mentioned above. These are the major items that are often overlooked by others.

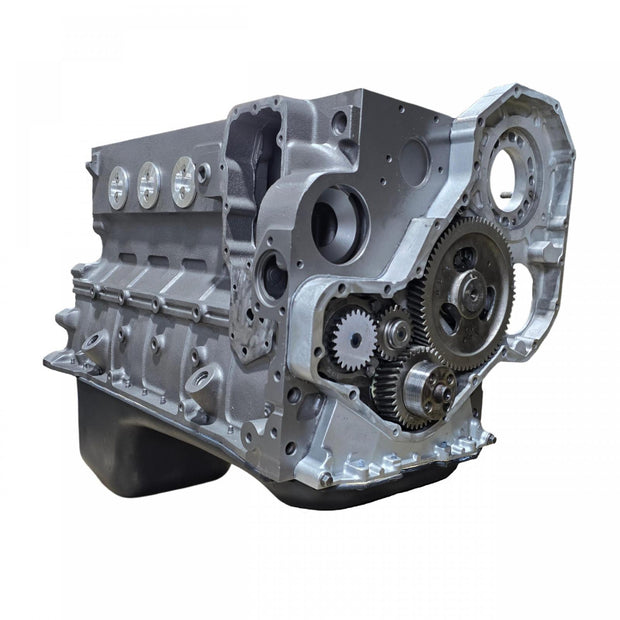

This 5.9L Short Block Dodge Cummins Diesel Engine Includes:
- Full CNC blueprint machining, (bore, deck, hone and line honed)
The Cylinder bores are blueprint bored from the crankshaft centerline, prior to being diamond-honed to within .0002 inch for the precise piston to cylinder bore clearances. The main bore (line bore) for the crankshaft is honed to precisely align the crankshaft in the engine block.
Bore block back to crankshaft center CNC Block to RA13 finish. Piston diameter measured to the nearest .0001 inch matched to cylinder bores. The cylinder block is surfaced to a surface finish of RA30 or lower, which exceeds the factory specification in both flatness and smoothness for the block to head sealing surface.
This is mandatory for the proper sealing of an MLS Gasket.
- Connecting Rods, New Damper
- Check both wrist pin and crankpin to rod clearances.
- New Pistons .020 or .040 over. 5.9 Cummins and .20 over 6.7 Cummins
- New Pistons, Rings, Pin Retainers weight-matched prior to crank balancing
Crankshaft
- Internally Balanced Crankshaft is polished and ground to .0005 concentricity or less.
- New Rod, Main and Cam Bearings
- Camshaft - Polished and Inspected
- Assembled by Our Professional Team In House.
- Perfect for daily driving use, family haulers and some towing.
- 5 year 100K warranty on our Daily Driver builds with upgradeable options
- Gaskets Installed
- Install Rear Main Seal
- Oil Pan Gasket
- Pickup Tube Gasket
- Front Cover Gasket
Choate Engineering Performance Crate Engine Features:
500 HP rated. This Choate engine is fully balanced, and is the perfect engine for spirited daily driving, consumer level towing and everyday life. Upgrades over the Model C include but are not limited to: Torque Plate Honing; Full Engine Balancing; Harmonic Balancer; Head Studs; Valve Seats; Rear Cover and Pickup Tube; Oil Pans; Welded Crank Gear.
Common Issues With The Dodge Cummins 5.9L Engine (and how we fix them)
Cylinder Heads- While there aren't as many issues with the bottom end of the Cummins, there are really BIG problems in the head department.
Valve seats fallout contacting the piston and cause catastrophic failure. We machine oversize valve seats within creased press fit area to remedy this issue.
Stamped gallery plugs in the heads blow out causing a mixture of oil and coolant, destroying the bearings. We thread the head and insert threaded plugs to make sure this issue never rears its ugly head.
Plus: Freeze plugs in the block blow out leaving you at best stranded on the side of the road, at worst, with a severely overheated engine in need of remanufacturing. Every new Choate Cummins engine comes standard with billet freeze plugs that are inchblow out proof inch using a tie bar bolting them into the side of the block.
Vehicles
- 2005-2010 Dodge Ram 2500 Laramie
- 2005-2010 Dodge Ram 2500 SLT
- 2005-2010 Dodge Ram 2500 ST
- 2005-2010 Dodge Ram 3500 Laramie
- 2005-2010 Dodge Ram 3500 SLT
- 2005-2010 Dodge Ram 3500 ST
- 2006-2007 Dodge Ram 2500 Sport
- 2006-2007 Dodge Ram 2500 TRX4
- 2006-2007 Dodge Ram 3500 Sport
- 2007-2007 Dodge Ram 3500 TRX4
- 2008-2009 Dodge Ram 3500 SXT
- 2008-2010 Dodge Ram 2500 SXT
- 2010-2010 Dodge Ram 2500 TRX
- 2011-2013 Dodge Ram 2500 ST
- 2011-2013 Dodge Ram 3500 ST
- 2011-2018 Dodge Ram 2500 SLT
- 2011-2020 Dodge Ram 3500 Laramie Longhorn
- 2011-2021 Dodge Ram 2500 Laramie Longhorn
- 2011-2024 Dodge Ram 2500 Laramie
- 2011-2024 Dodge Ram 3500 Laramie
- 2011-2024 Dodge Ram 3500 SLT
- 2012-2016 Dodge Ram 2500 Outdoorsman
- 2013-2015 Dodge Ram 2500 Lone Star
- 2013-2015 Dodge Ram 3500 Lone Star
- 2013-2024 Dodge Ram 2500 Big Horn
- 2013-2024 Dodge Ram 2500 Tradesman
- 2013-2024 Dodge Ram 3500 Big Horn
- 2013-2024 Dodge Ram 3500 Tradesman
- 2014-2015 Dodge Ram 2500 Laramie Limited
- 2014-2015 Dodge Ram 3500 Laramie Limited
- 2016-2024 Dodge Ram 2500 Limited
- 2016-2024 Dodge Ram 3500 Limited
- 2017-2017 Dodge Ram 3500 Lone Star
- 2019-2022 Dodge Ram 3500 Lone Star
- 2019-2024 Dodge Ram 2500 Lone Star
- 2021-2024 Dodge Ram 2500 Limited Longhorn
- 2021-2024 Dodge Ram 3500 Limited Longhorn
- 2023-2024 Dodge Ram 2500 Rebel
